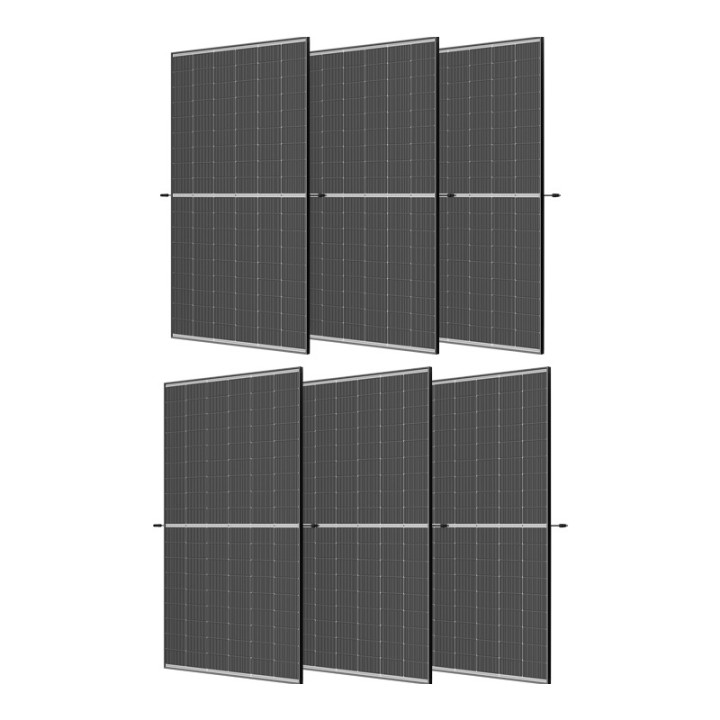

Фотоэлектрические панели Trina Solar TSM-510NEG18R.28-6, 510W (комплект из 6 шт.)

Price: 876,73 €
С НДС
Buy 6x Trina Solar 510W photovoltaic panels with i-TOPCon technology. High efficiency 22.9%, durable dual-glass design. Ideal for commercial and industrial roofs.
Product availability: Под заказ

The Trina Solar TSM-510NEG18R.28-6 set includes six high-performance photovoltaic panels, each delivering up to 510 W of power with an impressive efficiency of 22.9%. Utilizing advanced i-TOPCon N-type monocrystalline cell technology, these panels ensure superior energy conversion and long-term reliability.

  • High power output – 510 W per panel maximizes energy generation on limited roof space.
  • Durable dual-glass design – 1.6 mm glass sheets provide mechanical strength up to 5400 Pa positive load and 2400 Pa negative load.
  • Excellent performance in harsh conditions – Resistant to salt, ammonia, dust, and high humidity; fire class A+C.
  • Low temperature coefficient (-0.29%/°C) ensures stable output even in hot weather.
  • Long-term reliability – Only 1% degradation in the first year and 0.4% annually thereafter, retaining at least 87.4% power after 30 years.

This set is ideal for commercial and industrial rooftop installations where space and durability are key. Compatible with standard inverters, optimizers, and mounting systems.

  • Бренд
  • Код
    079963
  • MPN
    TSM-510NEG18R.28-6

  • Weight
    28.6 kg
  • Kit type
    Panel only
  • Module efficiency
    22.9 %
  • Module dimensions
    1961 x 1134 x 30 mm
  • Glass thickness
    1.6 mm
  • Positive pressure load
    5400 Pa
  • Negative pressure load
    2400 Pa
  • Fire class
    A+C
  • Temperature coefficient
    -0.29 %/°C
  • First year degradation
    1 %
  • Annual degradation
    0.4 %
  • Number of cells
    108
  • Flexible panel
    No
  • Бренд
    Trina Solar
  • Model
    TSM-510NEG18R.28-6
  • Артикул
    079963
  • Тип товара
    Photovoltaic panel set
  • Panel Power (per panel)
    510 W
  • PV Connector
    MC4 compatible
  • Number of Panels
    6
  • Total PV Array Power
    3060 W
  • Type of cells
    Monocrystalline
  • Maximum Power (STC)
    510 W
  • Maximum Power (NOCT)
    390 W
  • Open Circuit Voltage (STC)
    40.6 V
  • Short Circuit Current (STC)
    15.93 A
  • Maximum Operating Voltage (STC)
    33.7 V
  • Maximum Operating Current (STC)
    15.14 A
  • Open Circuit Voltage (NOCT)
    38.5 V
  • Short Circuit Current (NOCT)
    12.84 A
  • Maximum Operating Voltage (NOCT)
    31.9 V
  • Maximum Operating Current (NOCT)
    12.21 A
  • Power After 30 Years
    87.4 %
  • Resistance to Salt
    Yes
  • Resistance to Ammonia
    Yes
  • Resistance to Dust
    Yes
  • Resistance to High Humidity
    Yes
