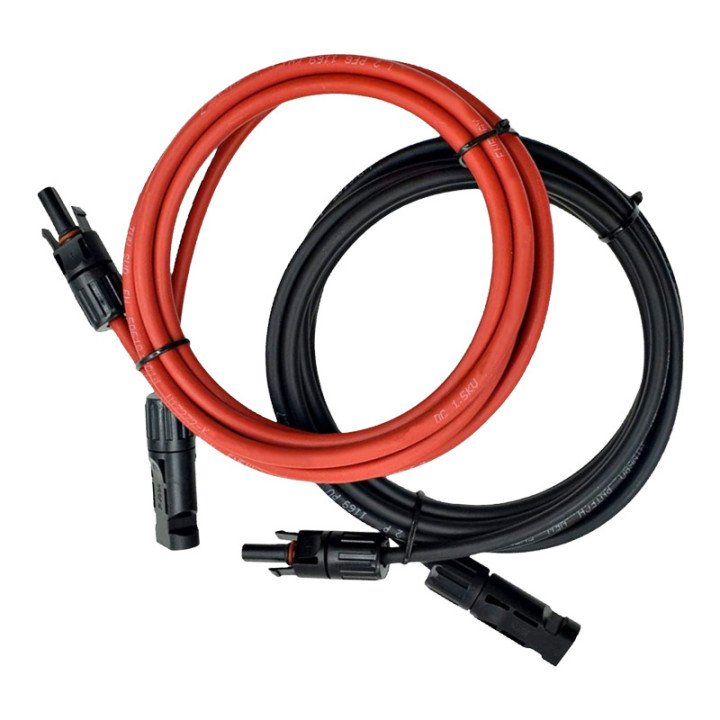

ECOFLOW XS6-2M-RED-BLACK Set of 2 MC4 Solar Extension Cables 2m

Regular price: 11,89 € (Save 4,71 €)
Price: 7,18 €
Tax included
Buy ECOFLOW XS6-2M-RED-BLACK set of 2 MC4 solar extension cables, 2m each. UV-resistant, tinned copper, 6mm², for photovoltaic systems. Durable and reliable.

The ECOFLOW XS6-2M-RED-BLACK set includes two MC4 extension cables, each 2 meters long, designed for photovoltaic applications. These single-core cables feature multi-stranded tinned copper conductors for high flexibility and are insulated with halogen-free cross-linked plastic. They comply with PN-EN 50618 and PN-EN 60228 standards, ensuring resistance to fire, UV radiation, ozone, and harsh weather conditions.

  • High-quality construction: Tinned copper conductor with 6 mm² cross-section, rated for 1.0/1.0 kV AC and 1.5 kV (1.8 kV) DC.
  • Durable and weather-resistant: UV-resistant, ozone-resistant, and suitable for outdoor and direct burial use. Operating temperature range from -40°C to +90°C.
  • Long service life: Expected lifespan of 25 years, with resistance to hydrolysis, ammonia, acids, and alkalis.
  • Easy installation: Pre-terminated MC4 connectors (male and female) for quick and secure connections.

Ideal for extending solar panel connections in residential and commercial PV systems. The set includes two cables (one red, one black) for polarity identification.

  • Reference
    079539
  • MPN
    XS6-2M-RED-BLACK

  • Operating temperature range
    -40 to +90 °C
  • Cable length
    2 m
  • Conductor material
    Tinned Copper
  • Connector gender
    Male-Female
  • Rated voltage ac
    1.0/1.0 kV
  • Operating voltage dc
    1.5 (1.8) kV
  • Insulation resistance
    1000 MΩ/km
  • Test voltage
    6500 V (AC)
  • Outer diameter
    6.2 mm
  • Nominal insulation wall thickness
    0.7 mm
  • Nominal sheath wall thickness
    0.8 mm
  • Fire resistance
    PN-EN 60332-1, LSOH
  • Expected service life
    25 years
  • Cable type
    H1Z2Z2-K
  • Brand
    ECOFLOW
  • Model
    XS6-2M-RED-BLACK
  • SKU
    079539
  • Product Type
    Solar extension cable set
  • Color
    Red
  • Connector / Interface Type
    MC4 (solar)
  • Outdoor / UV Resistant
    Yes
  • Conductor Cross-Section
    6.00 mm²
  • Maximum Single Wire Diameter
    0.31 mm
  • Max Conductor Resistance at 20°C
    5.09 mΩ/m
  • Min Insulation Resistance at 20°C
    580 MΩ/km
