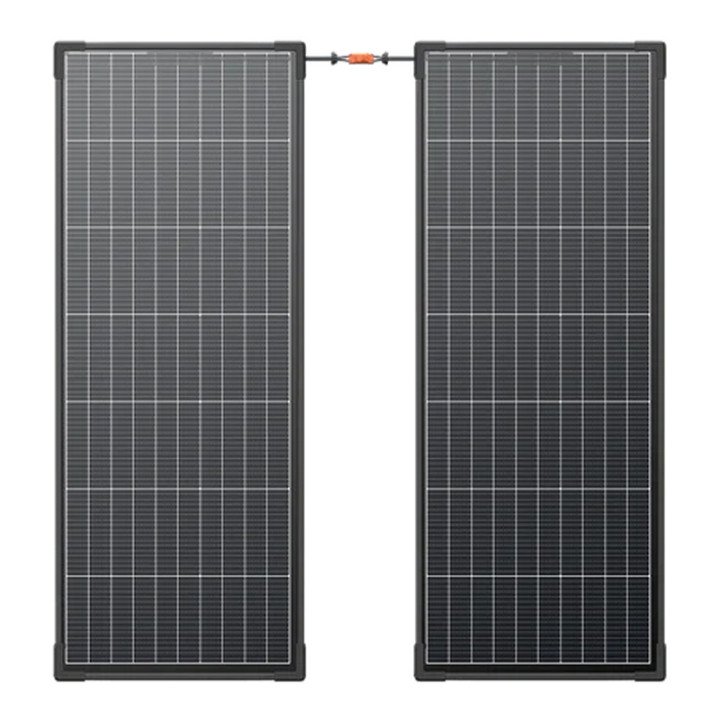

EcoFlow 130W Rigid Photovoltaic Panel Set of 2 (5022401002)
The EcoFlow 130W Rigid Photovoltaic Panel Set (model 5022401002) includes two high-efficiency solar panels designed for motorhomes, vans, and mobile power systems. Each panel delivers a nominal output of 130W using advanced TOPCon N-Type cell technology, achieving conversion efficiencies of up to 25%. The ultra-slim 12mm housing reduces air resistance by over 60% compared to conventional panels, helping to lower fuel consumption while driving. With IP68 dust and water resistance, these panels are built to withstand harsh weather conditions. The set includes mounting brackets and MC4/XT60 compatible cables for easy integration with EcoFlow power stations and other systems. Expandable up to 10 panels in parallel for a total power of up to 1300W.
- High efficiency: TOPCon N-Type cells with 25% efficiency deliver 3-6% more energy on cloudy days than traditional P-PERC cells.
- Slim and aerodynamic: Only 12mm thick, reducing air resistance and fuel consumption.
- Durable construction: 2mm tempered glass front, reinforced corners, and IP68 rating for long-lasting performance.
- Easy installation: Plug-and-play with MC4 and XT60 connectors; compatible with EcoFlow portable power stations.
- Scalable: Connect up to 10 panels in parallel for a total of 1300W.
This set is ideal for off-grid adventures, providing reliable solar power for charging devices and appliances. All necessary mounting hardware and cables are included for a straightforward setup.
-
Reference078324
-
ean134895251642033
-
MPN5022401002
-
IP ratingIP68
-
Dimensions1345 x 524 x 12 mm
-
Weight3.5 kg
-
Kit typePanel only
-
Cell typeTOPCon N-Type
-
Glass thickness2 mm
-
Flexible panelNo
-
Open circuit voltage51 V
-
Short circuit current3.2 A
-
Efficiency25 %
-
Optimum voltage43 V
-
Max panels in parallel10
-
BrandEcoFlow
-
Model5022401002
-
SKU078324
-
Product TypePhotovoltaic panel
-
EAN4895251642033
-
Panel Power (per panel)130 W
-
PV ConnectorMC4 compatible
-
Number of Panels2
-
Total PV Array Power260 W
-
Temperature Coefficient of Voc-0.3 %/°C
