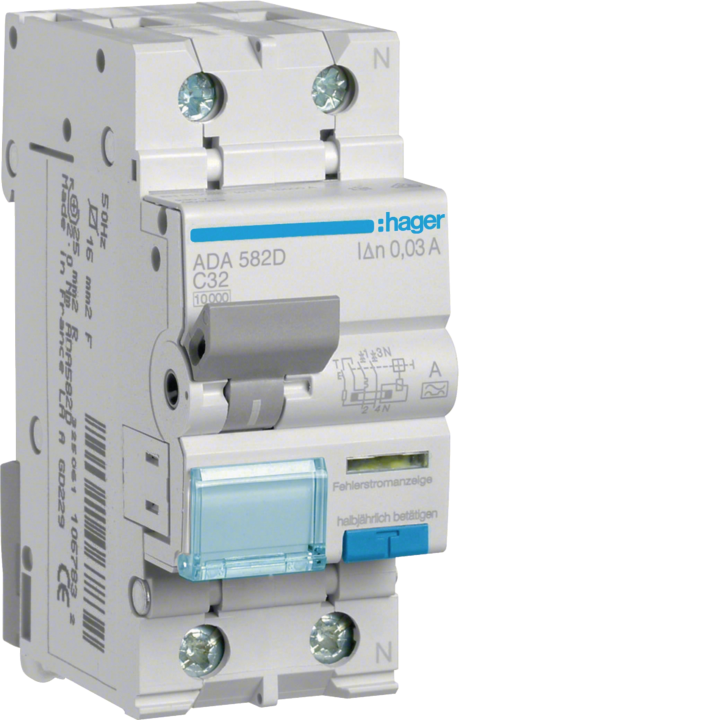

Hager ADA582D RCBO 1P+N 10kA C-32A 30mA Type A

Hager ADA582D RCBO 1P+N 10kA C-32A 30mA Type A

Hager
88,05 €
С НДС
Hager ADA582D RCBO: 1P+N, 10kA breaking capacity, C-32A, 30mA Type A residual current protection. Reliable protection for your electrical circuits.
Доставка: 5 рабочих дней

The Hager ADA582D is a combined Residual Current Circuit Breaker with Overcurrent Protection (RCBO) designed for 1P+N applications. It offers a rated current of 32A with a C trip curve, a breaking capacity of 10kA, and 30mA Type A residual current protection. This device provides both overcurrent and earth leakage protection in a single unit, saving space in the distribution board.

  • Rated current: 32A (C-curve)
  • Breaking capacity: 10kA
  • Residual current: 30mA Type A
  • Poles: 1P+N
  • Mounting: DIN rail 35mm

Ideal for residential and commercial installations where combined protection is required. Ensure compliance with local electrical regulations.

  • Бренд
  • Код
    ADA582D
  • По наличию
    800 шт.
  • ean13
    3250611067863
  • MPN
    ADA582D

  • Монтаж
    DIN rail 35mm
  • Число полюсов
    1P+N
  • Trip curve
  • Rcd type
    A
  • Бренд
    Hager
  • Артикул
    ADA582D
  • Тип товара
    RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
  • EAN
    3250611067863
  • Model / Reference
    ADA582D
  • Breaking Capacity (Icn)
    10 kA
  • Rated Current (In)
    32 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    2 module
