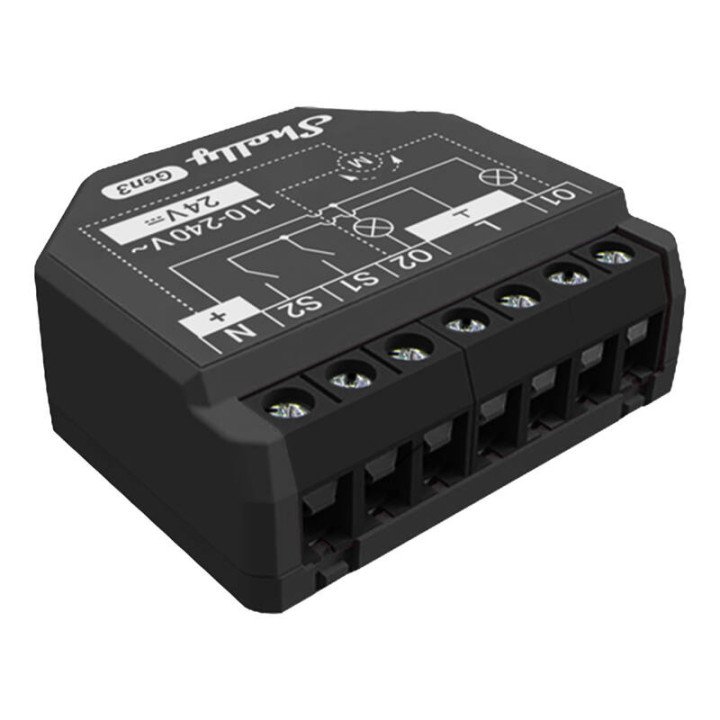

Shelly 2PM Gen3 2-Channel Smart Relay Controller with Energy Monitoring, WiFi/Bluetooth
Price:
34,61 €
С НДС
Control two circuits remotely with Shelly 2PM Gen3. Energy monitoring, WiFi/Bluetooth, compact design. Buy now for smart home automation.
The Shelly 2PM Gen3 is a smart dual-channel relay controller that combines remote switching with precise energy monitoring. It allows you to manage two independent electrical circuits or control bidirectional devices like blinds and awnings from anywhere via the Shelly app. With its compact size, it fits into standard flush-mounted boxes, making it ideal for retrofitting existing switches and outlets.
- Dual-channel control with independent energy measurement on each channel for real-time power consumption tracking.
- Cover Control mode for automated positioning of blinds, curtains, and sliding doors with obstacle detection.
- Wi-Fi and Bluetooth connectivity with BLE gateway and Wi-Fi range extender functionality.
- Advanced automation via scripting, webhooks, and support for KNXnet/IP integration.
- Comprehensive safety features including overheat, overvoltage, overload, and overcurrent protection.
Use the Shelly 2PM Gen3 to automate lighting, appliances, and motorized shades while monitoring energy usage to save on electricity bills. It works seamlessly with the Shelly Cloud and supports voice assistants like Amazon Alexa and Google Home.
-
Power sourceMains 230V
-
Power supply110-240V~ / 24 V⎓ ±10%
-
Communication protocolBLE
Bluetooth
KNX
Wi-Fi -
Operating temperature-20 to 40 °C
-
Weight30 g
-
Housing materialplastic
-
Humidity30 to 70 % RH
-
Max altitude
-
ДатчикTemperature & Humidity Sensor
-
МонтажWall
-
Housing colorblack
-
Rf band
-
Rangeup to 30 m indoors
-
Overload protection
-
Overvoltage protection
-
Measured parametersHumidity
Temperature -
Conductor cross section0.2 to 2.5 mm²
-
Operating voltage110-240V~ / 24V⎓ ±10%
-
БрендShelly
-
Model2PMGen3
-
Артикул072081
-
Тип товараSmart relay controller
-
EAN3800235261903
-
ColorBlack
-
App EcosystemShelly
-
Requires Hub / GatewayNo
-
Dimensions (mm)37 x 42 x 16 mm
-
Protection Against Overheating
-
Wi-Fi Protocol
-
Maximum Switching Current
-
Voltmeter (AC)
-
Maximum Switching Voltage
-
Built-in Temperature Sensor
-
Length of stripped wire6 to 7 mm
-
Maximum Terminal Torque0.4 Nm
-
Obstacle Detection
-
Ammeter (AC)
-
Protection against excessive power consumption
-
Safety switch
