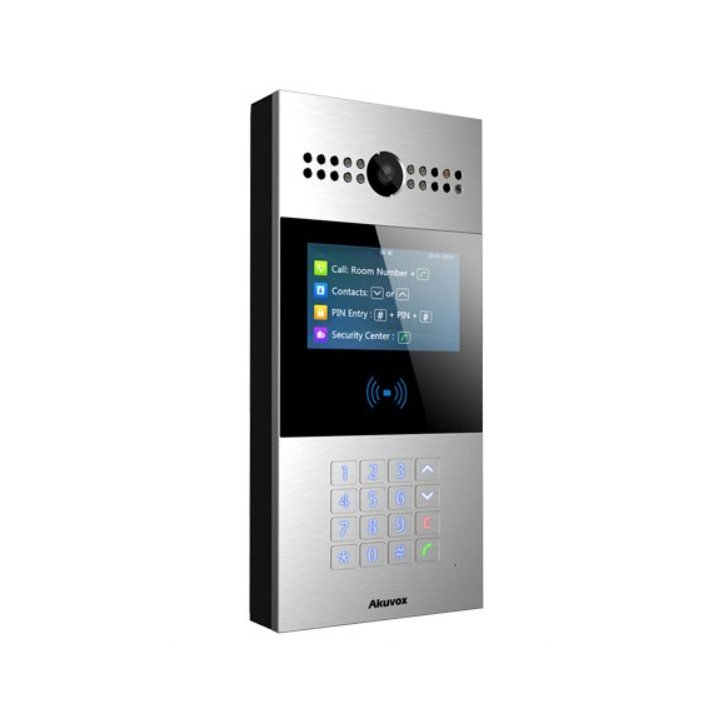

Akuvox R28A Multi-Family Outdoor Video Intercom Panel

Akuvox R28A Multi-Family Outdoor Video Intercom Panel

701,23 €
Tax included
Upgrade your building security with the Akuvox R28A video intercom panel. Features 2MP camera, IP65 rating, PoE, and mobile app support. Shop now!

The Akuvox R28A is a high-quality multi-family outdoor video intercom panel designed for secure access control. Its robust aluminum housing and IP65 rating ensure durability in all weather conditions. The 2MP camera with night vision and 116° wide viewing angle provides clear monitoring day and night.

  • 2MP camera with night vision and 116° horizontal viewing angle
  • 4.3-inch TFT LCD display for clear video and interface
  • IP65 weatherproof rating for outdoor use
  • PoE (802.3af) or 12V DC power supply
  • RF card reader (13.56MHz & 125kHz) and keypad with LED backlight
  • 3 relay inputs and 3 outputs for integration with locks and sensors
  • Mobile app support (Android/iOS) for remote monitoring

Ideal for apartment buildings and gated communities, the R28A supports SIP, audio/video codecs, and works in extreme temperatures from -40°C to +55°C. Note: mounting box sold separately.

  • Reference
    R28A
  • In stock
    999 Items
  • MPN
    R28A

  • IP rating
    IP65
  • Night vision
    Yes
  • Video codecs
    H.264
  • Power consumption
    400 mA
  • Operating temperature
    -40 to +55 °C
  • Housing material
    Aluminum
  • Mounting
    Flush mount, Surface mount
  • Mobile app
    Akuvox (Android, iOS)
  • Display type
    TFT LCD
  • Ethernet ports
    1 x 10/100 Mbps
  • Display size
    4.3 in
  • Camera resolution
    2 MP
  • Video resolution
    Up to 1080p
  • Relay outputs
    3 inputs, 3 outputs
  • Keypad
    Numeric with function buttons and LED backlight
  • Brand
    Akuvox
  • Model
    R28A
  • SKU
    R28A
  • Product Type
    Video Intercom Panel
  • Horizontal Viewing Angle
    116 °
  • Supported Protocols
    IPv4, HTTP, HTTPS, FTP, SNMP, DNS, NTP, RTSP, RTP, TCP, UDP, ICMP, DHCP, ARP
  • Power over Ethernet
    PoE 802.3af
  • Card Reader
    RF (13.56MHz & 125kHz)
  • Max Frame Rate
    30 fps
  • Minimum Illumination
    0.1 lux
  • Flush Mount Dimensions
    280 x 130 x 68 mm
  • Surface Mount Dimensions
    280 x 130 x 38 mm
  • Heater
    Yes
  • Sensor Support
    Infrared, Weigand, RS485
  • Alternative Power Supply
    12V DC
  • SIP Version
    SIP v1 (RFC2543), SIP v2 (RFC3261)
  • Audio Codecs
    G.711a, G.711μ, G.722, G.729
  • Audio Quality
    7 kHz
  • Echo Cancellation
    Yes
  • Voice Activation
    Yes
  • IR LEDs
    Yes
