Контактор Hager ESC225, 25A, 2NO, 230V

Контактор Hager ESC225, 25A, 2NO, 230V

Hager
29,63 €
С НДС
Hager ESC225 DIN-rail contactor, 25A, 2 NO contacts, 230V AC coil. Reliable load switching for lighting and heating circuits.
Доставка: 5 рабочих дней

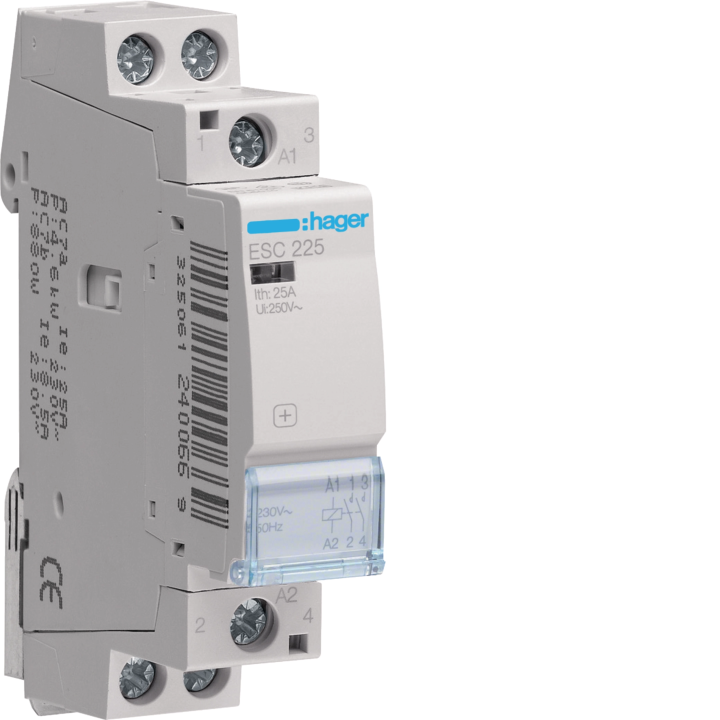

The Hager ESC225 is a modular DIN-rail installation contactor rated 25 A with two normally-open (2NO) contacts and a 230 V AC control coil. It switches lighting, heating and similar loads cleanly and reliably from a remote control signal.

  • 25 A rated switching current
  • 2 NO contacts for voltage-free switching
  • 230 V AC coil
  • DIN-rail mounting in the distribution board
  • Genuine Hager component

A dependable load-switching contactor for everyday installation circuits. Specify the ESC225 where reliable remote control of 25 A loads is required.

  • Бренд
  • Код
    ESC225
  • По наличию
    800 шт.
  • ean13
    3250612400669
  • MPN
    ESC225

  • Communication protocol
    none
  • Mounting type
    DIN Rail
  • Номинальный ток
  • Operating voltage
    230V
  • Control method
    Mechanical button
  • Dimmable
    No
  • Бренд
    Hager
  • Model
    ESC225
  • Артикул
    ESC225
  • Тип товара
    Modular installation contactor
  • EAN
    3250612400669
  • Тип устройства
    Relay module
  • Dry Contact (voltage-free output)
    Yes
  • Number of Gangs / Channels
    2
