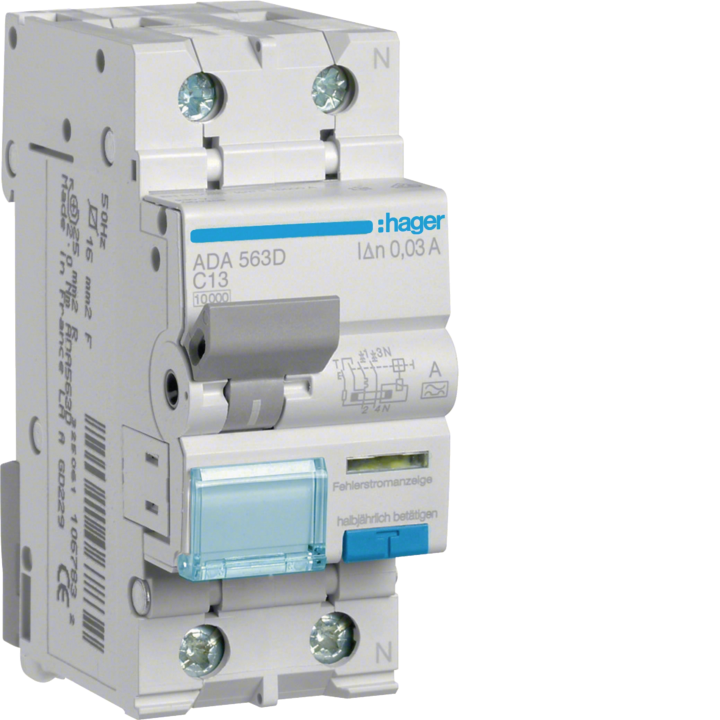

Hager ADA563D RCBO 1P+N 10kA C-13A 30mA Type A

The Hager ADA563D is a combined residual current circuit breaker (RCBO) designed to protect against overloads, short circuits, and earth faults. This 1P+N unit offers a breaking capacity of 10kA, a rated current of 13A, and a trip curve of C. The residual current is 30mA with a Type A RCD characteristic, making it suitable for circuits with electronic loads.

• Combined overcurrent and earth leakage protection in one device
• 1P+N poles for single-phase applications
• High breaking capacity of 10kA for robust fault handling
• C trip curve for moderate inrush currents (e.g., motors, transformers)
• 30mA Type A residual current protection for sensitive electronics
• Compact 2-module width for space-saving installation on DIN rail

Ideal for residential and commercial distribution boards, the Hager ADA563D ensures safety and reliability. Easy to install on standard 35mm DIN rail.
