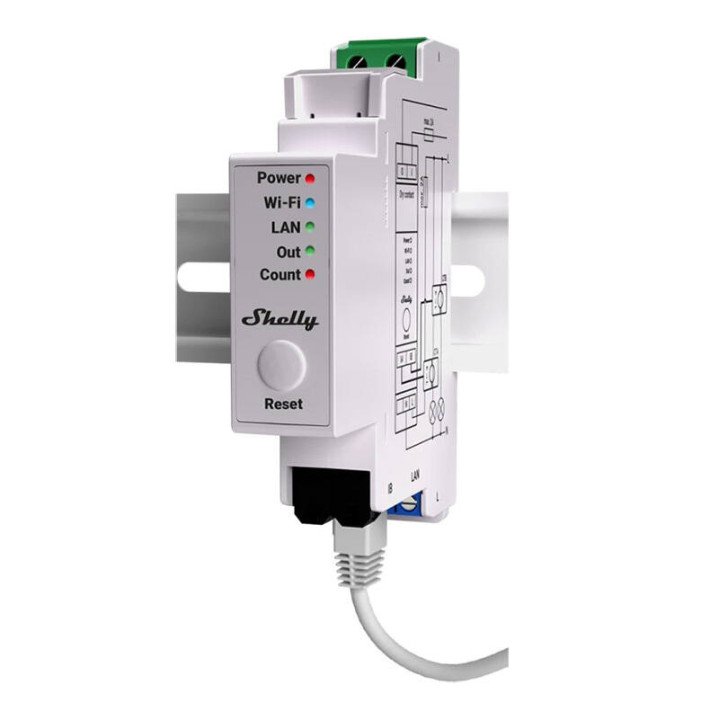

Shelly Pro EM-50 Energy Meter, WiFi/LAN

Shelly Pro EM-50 Energy Meter, WiFi/LAN

123,42 €
AR PVN
Monitor energy consumption with Shelly Pro EM-50. WiFi/LAN, 50A CT, DIN rail mount. Real-time data, MQTT, and cloud integration. Buy now!

The Shelly Pro EM-50 is a professional single-phase energy meter designed for precise monitoring of electrical consumption in residential, commercial, and industrial settings. With dual-channel measurement, it tracks voltage, current, active and apparent power in real time. The device supports both Wi-Fi and LAN connectivity, ensuring reliable data transmission. It mounts on a standard DIN rail and features a compact plastic housing.

  • Real-time energy monitoring: Measure voltage (100-260 V RMS), current (up to 50 A via CT), active/apparent power, and power factor.
  • Data logging: Stores up to 60 days of data at 1-minute intervals, exportable via CSV or JSON.
  • Smart home integration: Works with MQTT, HTTP, WebSocket, and the Shelly Cloud app for remote control and automation.
  • Secure communication: TLS encryption protects all data transmissions.
  • Easy setup: Built-in web interface for configuration, no hub required.

Ideal for energy management systems, the Shelly Pro EM-50 helps you optimize power usage and reduce costs. Order now for efficient energy monitoring!

  • Norāde
    063426
  • Pieejamās vispirms
    116 vienības:
  • ean13
    3800235268148
  • MPN
    EM-50 PRO

  • Dimensions
    94 x 19 x 69 ±0.5 mm
  • Communication protocol
    Bluetooth
    Wi-Fi
  • Material
    Plastic
  • Weight
    63 ±1 g
  • Humidity
    30 to 70 % RH
  • Data export
    CSV for recorded PQ values, JSON format export via RPC
  • Sensor type
    Temperature & Humidity Sensor
  • Mounting
    DIN Rail
  • Ambient temperature
    -20 to 40 °C
  • Ac power supply voltage
    100 - 260 V
  • Frequency
    50/60 Hz
  • Internal temperature sensor
    Yes
  • Voltmeter accuracy
    ±1 %
  • Power and energy meters
    Active and apparent power, active and apparent energy, power factor
  • No load threshold
    30 VA per phase
  • Measurement data storage
    At least 60 days with data resolution of 1 min
  • Bluetooth protocol
    4.2
  • Bluetooth range
    Up to 10 m indoors and 30 m outdoors (depends on local conditions)
  • Cpu
    ESP32-D0WDQ6
  • Flash memory
    16 MB
  • Scripts
    Yes
  • Mqtt
    Yes
  • Maximum altitude
    2000 m
  • Brand
    Shelly
  • Model
    Pro EM-50
  • SKU
    063426
  • Product Type
    Energy Meter
  • EAN
    3800235268148
  • Color
    White
  • App Ecosystem
    Shelly
  • Wi-Fi Range
    Up to 30 m indoors and 50 m outdoors (depends on local conditions)
  • Maximum AC Switching Voltage
    240 V
  • Maximum Switching Current
    2 A
  • Voltmeter (RMS)
    100 - 260 V
  • Ammeters (RMS using CT)
    0 - 50 A
  • Accuracy of Ammeter
    ±1% (5 - 50 A), ±2% (0 - 5 A)
  • Webhooks (URL shares)
    20 with 5 URLs per hook
  • CoAP
    No
