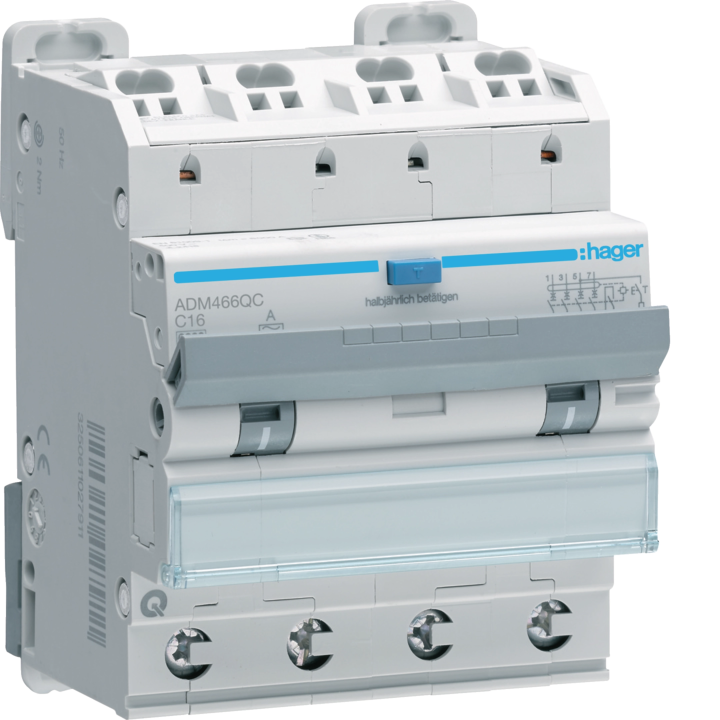

Hager ADM466QC RCBO 4P 6kA C-16A 30mA Type A

Hager ADM466QC RCBO 4P 6kA C-16A 30mA Type A

167,25 €
AR PVN
Hager ADM466QC RCBO 4-pole, 16A, C-curve, 30mA Type A, 6kA breaking capacity. Reliable protection for electrical circuits.

The Hager ADM466QC is a high-quality RCBO (Residual Current Circuit Breaker with Overcurrent Protection) designed for reliable protection of electrical circuits. This 4-pole device combines overcurrent and residual current protection in a single unit, saving space in distribution boards.

  • Rated current: 16A with C trip curve for general-purpose protection
  • Residual current: 30mA Type A, sensitive to pulsating DC and AC residual currents
  • Breaking capacity: 6kA (Icn) ensuring safety under fault conditions
  • Mounting: Standard 35mm DIN rail installation
  • Frequency: 50/60 Hz, suitable for most residential and commercial applications

Ideal for use in distribution boards where combined protection and space efficiency are required. The ADM466QC is part of Hager's QC/QB series, known for reliability and ease of installation.

  • Norāde
    ADM466QC
  • Pieejamās vispirms
    800 vienības:
  • ean13
    3250611027997
  • MPN
    ADM466QC

  • Mounting
    DIN rail 35mm
  • Poles
    4P
  • Trip curve
    C
  • Rcd type
    A
  • Brand
    Hager
  • SKU
    ADM466QC
  • Product Type
    RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
  • EAN
    3250611027997
  • Model / Reference
    ADM466QC
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    16 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230/400V V
  • Rated Frequency
    50/60 Hz
  • Tripping / Time Delay Class
    Instantaneous
