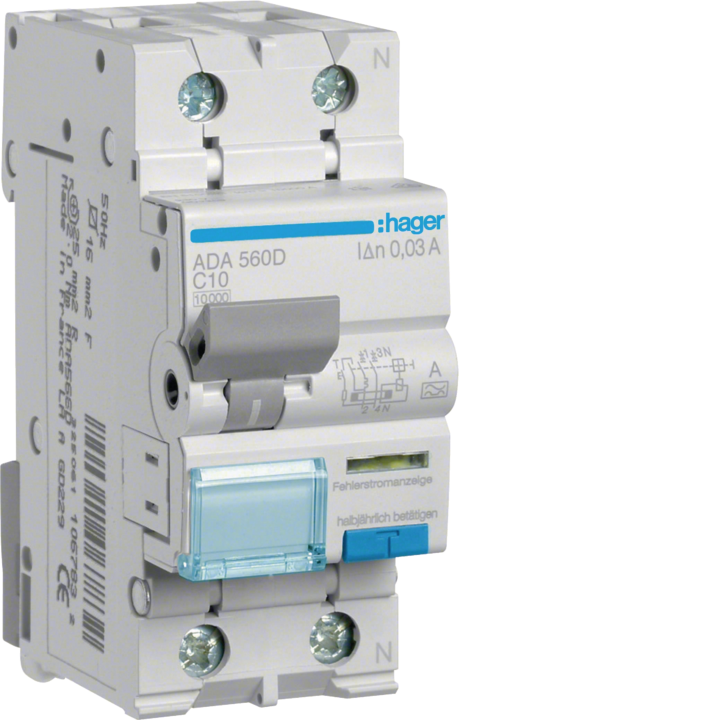

Hager ADA560D RCBO 1P+N 10kA C-10A 30mA Type A

The Hager ADA560D is a combined residual current circuit breaker (RCBO) that integrates overcurrent and earth leakage protection in a single compact device. Designed for 1P+N circuits, it offers a rated current of 10A with a C trip curve, a breaking capacity of 10kA, and a residual current sensitivity of 30mA Type A.

• Combined protection: Overcurrent (MCB) and residual current (RCD) in one unit saves space in the distribution board.
• High breaking capacity: 10kA ensures reliable interruption under fault conditions.
• Type A RCD: Detects pulsating DC and AC residual currents for enhanced safety with electronic loads.
• Easy installation: Fits standard 35mm DIN rail, 2 modules wide.

Ideal for residential and commercial applications where both short-circuit and earth fault protection are required. Hager quality ensures long-lasting performance.
