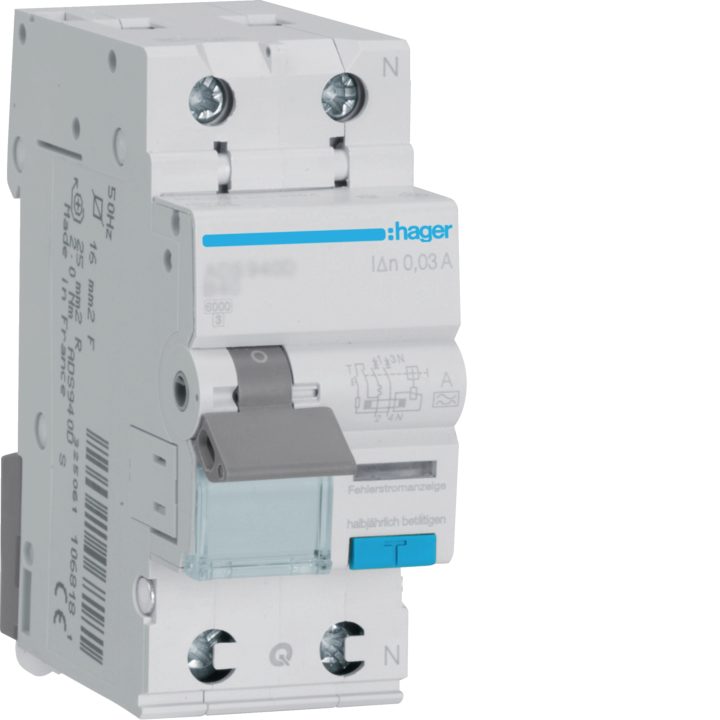

Hager ADS975D RCBO 1P+N 6kA C-25A 30mA Type A

Hager ADS975D RCBO 1P+N 6kA C-25A 30mA Type A

67,22 €
AR PVN
Hager ADS975D RCBO: 1P+N, 6kA breaking capacity, C-curve 25A, 30mA Type A RCD. Reliable protection for your electrical circuits. Buy now!

The Hager ADS975D is a high-quality RCBO (Residual Current Circuit Breaker with Overcurrent Protection) designed for residential and commercial electrical installations. It combines overcurrent protection and residual current protection in a single compact device, saving space in your distribution board.

  • 1P+N poles – protects a single-phase circuit with neutral switching.
  • Rated current 25A with C-curve tripping characteristic for moderate inrush currents.
  • 6kA breaking capacity (Icn) ensures reliable interruption under short-circuit conditions.
  • 30mA Type A RCD – detects sinusoidal AC and pulsating DC residual currents, offering enhanced protection against electric shock.
  • Rated voltage 230V suitable for standard single-phase systems.
  • Designed for DIN rail mounting (35mm) for quick and secure installation.

Ideal for protecting circuits supplying sockets, lighting, and general appliances. Trust Hager for safety and performance.

  • Norāde
    ADS975D
  • Pieejamās vispirms
    800 vienības:
  • ean13
    3250611068242
  • MPN
    ADS975D

  • IP rating
    IP20
  • Mounting
    DIN rail 35mm
  • Poles
    1P+N
  • Trip curve
    C
  • Rcd type
    A
  • Terminal type
    Screw
  • Brand
    Hager
  • SKU
    ADS975D
  • Product Type
    RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
  • EAN
    3250611068242
  • Model / Reference
    ADS975D
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    25 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    2 module
  • Tripping / Time Delay Class
    Instantaneous
