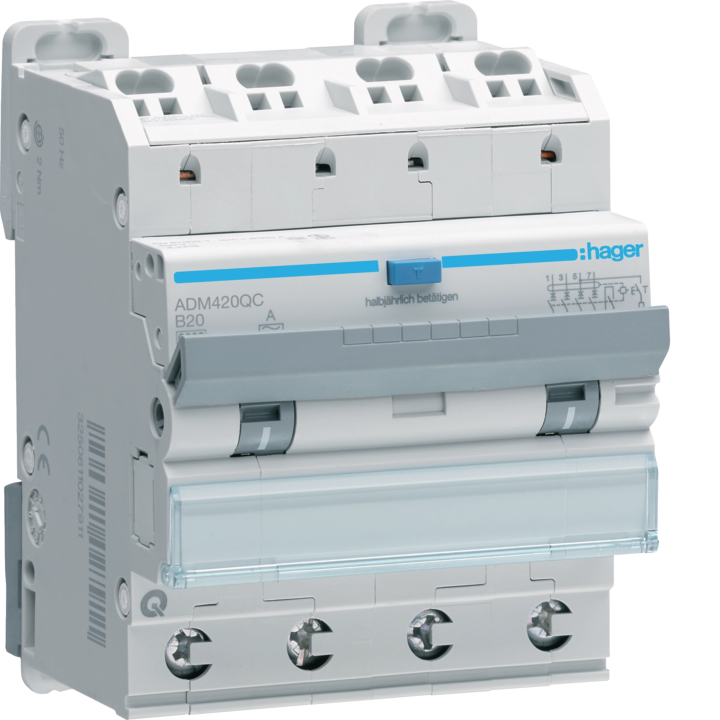

Hager ADM420QC RCBO 4P 6kA B-20A 30mA Type A

Hager ADM420QC RCBO 4P 6kA B-20A 30mA Type A

170,83 €
AR PVN
Hager ADM420QC RCBO, 4-pole, 6kA breaking capacity, B-curve 20A, 30mA Type A RCD. Reliable protection for electrical circuits.

The Hager ADM420QC is a combined residual current circuit breaker (RCBO) with overcurrent protection. It features 4 poles, a rated current of 20A, B-curve tripping characteristic, and a 30mA Type A residual current device. With a breaking capacity of 6kA, it ensures safety in residential and commercial installations.

  • 4-pole design for three-phase systems
  • B-curve for protection of cables and resistive loads
  • 30mA Type A RCD for protection against sinusoidal and pulsating DC fault currents
  • 6kA breaking capacity suitable for most distribution boards
  • DIN rail mounting for easy installation

Ideal for use in distribution boards where combined overcurrent and residual current protection is required.

  • Norāde
    ADM420QC
  • Pieejamās vispirms
    800 vienības:
  • ean13
    3250611027959
  • MPN
    ADM420QC

  • IP rating
    IP20
  • Mounting
    DIN rail 35mm
  • Poles
    4P
  • Trip curve
    B
  • Rcd type
    A
  • Terminal type
    Screw
  • Brand
    Hager
  • SKU
    ADM420QC
  • Product Type
    RCBO
  • EAN
    3250611027959
  • Model / Reference
    ADM420QC
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    20 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230/400V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    4 module
  • Tripping / Time Delay Class
    Instantaneous
