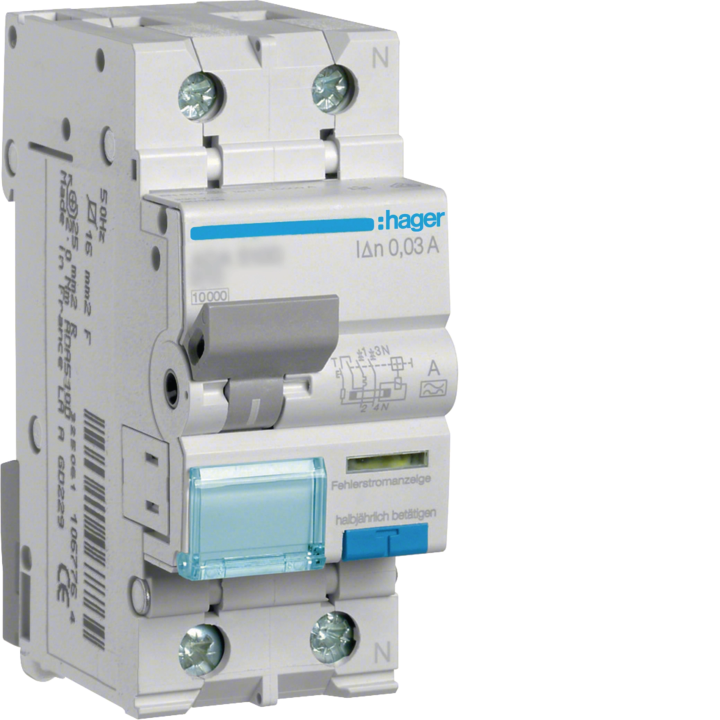

Hager ADA556D RCBO 1P+N 10kA C-6A 30mA Type A

The Hager ADA556D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for residential and commercial installations. It offers 1P+N configuration, a rated current of 6A, and a C trip curve for standard inductive loads. With a breaking capacity of 10kA and a residual current rating of 30mA Type A, it provides reliable protection against earth faults and short circuits.

• 1P+N configuration – protects one phase and neutral
• Rated current 6A – suitable for lighting and small loads
• C trip curve – for moderate inrush currents
• 10kA breaking capacity – high fault current handling
• 30mA Type A RCD – detects AC and pulsating DC faults
• DIN rail mounting – easy installation in distribution boards

Ideal for protecting final circuits in domestic and light commercial environments. Always install according to local regulations.
