Shelly EM + 50A transformatora komplekts (enerģijas mērīšana)

Shelly EM + 50A transformatora komplekts (enerģijas mērīšana)

59,21 €
AR PVN

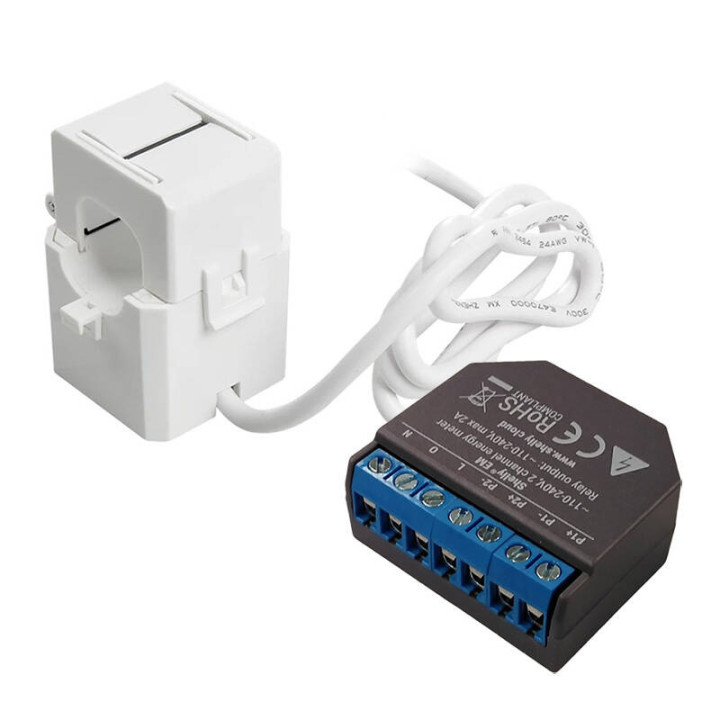

The Shelly EM + 50A Transformer Kit is a comprehensive energy monitoring solution for your home or office. It combines the Shelly EM Wi-Fi smart meter with a high-accuracy 50A current transformer, ena
Piegāde: 5 darba dienas

The Shelly EM + 50A Transformer Kit is a comprehensive energy monitoring solution for your home or office. It combines the Shelly EM Wi-Fi smart meter with a high-accuracy 50A current transformer, enabling real-time tracking of electricity usage for individual circuits or appliances.

  • Real-time energy monitoring – Track consumption daily, weekly, monthly, or yearly via the Shelly app.
  • Wi-Fi connectivity – 802.11 b/g/n with up to 30 m indoor and 50 m outdoor range.
  • 2-channel measurement – Monitor two single-phase circuits simultaneously.
  • High-accuracy transformer – 1% accuracy, 50A primary, 16.67mA secondary, with saturation protection ≥85A.
  • Compact design – Shelly EM: 39x36x17 mm; Transformer: 23.5x41.5x26 mm with 60 cm cable.
  • Smart control – Works with Shelly app, supports schedules, sunrise/sunset, and remote on/off.

Ideal for reducing energy costs and optimizing consumption. Easy to install and integrate with existing electrical systems.

  • Norāde
    062272
  • Pieejamās vispirms
    35 vienības:
  • MPN
    EM+50A

  • Dimensions
    39 x 36 x 17 mm
  • Wi-Fi standard
    802.11 b/g/n
  • Operating temp c
    0 to +40 °C
  • Input voltage v
    110-230 V
  • Frequency hz
    50/60 Hz
  • Wifi range indoor m
    30 m
  • Wifi range outdoor m
    50 m
  • Transformer accuracy percent
    1 %
  • Transformer core
    Ferrite core
  • Transformer electrical strength v
    3000 VAC
  • Transformer inner diameter mm
    11 mm
  • Transformer cable length cm
    60 cm
  • Transformer load resistance ohm
    20 Ω
  • Transformer primary current a
    50 A
  • Transformer secondary currentm a
    16.67 mA
  • Transformer saturation current a
    ≥85 A
  • Transformer dimensions mm
    23.5 x 41.5 x 26 mm
