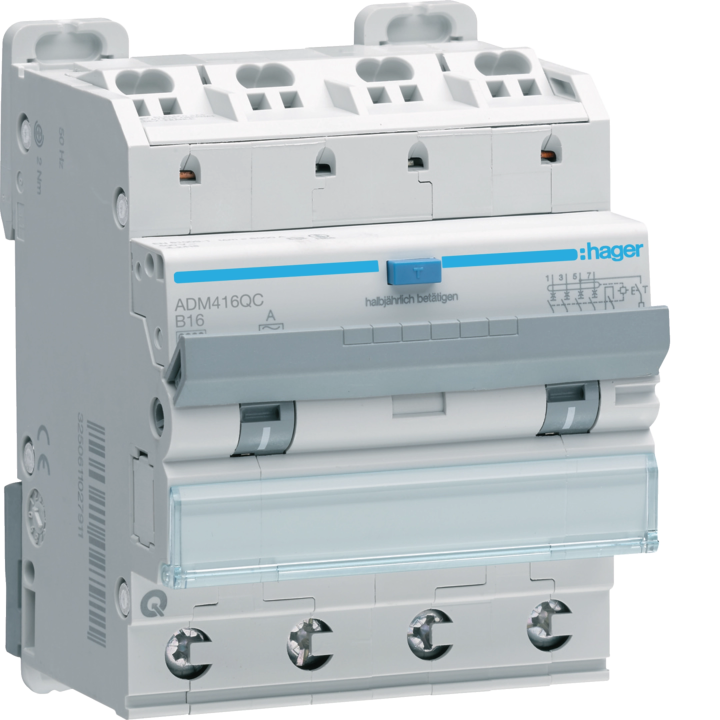

Hager ADM416C RCBO 4P 6kA B-16A 30mA Type A

Hager ADM416C RCBO 4P 6kA B-16A 30mA Type A

131,50 €
AR PVN
Hager ADM416C 4-pole RCBO, 6kA breaking capacity, B-curve, 16A rated current, 30mA Type A RCD. Reliable protection for electrical circuits.

The Hager ADM416C is a 4-pole RCBO (Residual Current Circuit Breaker with Overcurrent Protection) combining overcurrent and earth leakage protection in a single device. With a rated current of 16A, B-curve tripping characteristic, and 6kA breaking capacity, it is suitable for protecting final circuits against overloads and short circuits. The integrated 30mA Type A residual current device provides protection against sinusoidal AC and pulsating DC fault currents.

  • 4-pole design for three-phase applications
  • B-curve for general-purpose and lighting circuits
  • 6kA breaking capacity suitable for residential and commercial installations
  • 30mA Type A RCD for enhanced personal protection
  • DIN rail mounting for easy installation in distribution boards

Ideal for use in electrical distribution boards to ensure safety and compliance with modern wiring regulations.

  • Norāde
    ADM416C
  • Pieejamās vispirms
    800 vienības:
  • ean13
    3250611020226
  • MPN
    ADM416C

  • Mounting
    DIN rail 35mm
  • Poles
    4P
  • Trip curve
    B
  • Rcd type
    A
  • Brand
    Hager
  • SKU
    ADM416C
  • Product Type
    RCBO
  • EAN
    3250611020226
  • Model / Reference
    ADM416C
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    16 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230/400V V
  • Rated Frequency
    50/60 Hz
