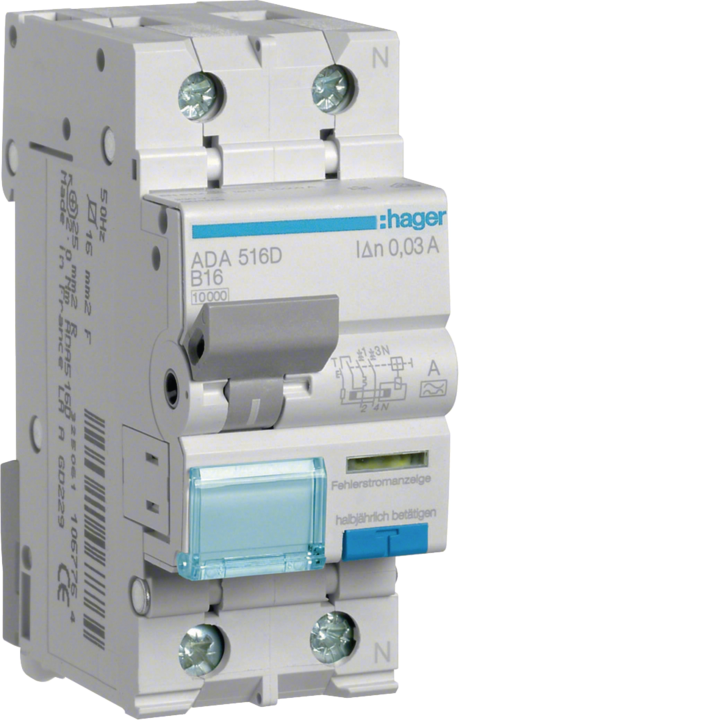

Hager ADA516D RCBO 1P+N 10kA B-16A 30mA Type A

Hager ADA516D RCBO 1P+N 10kA B-16A 30mA Type A

71,87 €
AR PVN
Hager ADA516D RCBO, 1P+N, 10kA breaking capacity, B curve 16A, 30mA Type A RCD. Reliable protection for your electrical circuits.

The Hager ADA516D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for residential and commercial electrical installations. It combines a 16A miniature circuit breaker (MCB) with a 30mA Type A residual current device (RCD) in a single compact unit.

  • 1P+N configuration with neutral switching
  • B tripping curve for protection of cables and resistive loads
  • 10kA breaking capacity (Icn) for high fault current handling
  • 30mA Type A RCD detects sinusoidal and pulsating DC fault currents
  • Designed for DIN rail mounting in distribution boards

Ideal for protecting final circuits against overload, short-circuit, and earth faults. Complies with relevant standards for electrical safety.

  • Norāde
    ADA516D
  • Pieejamās vispirms
    800 vienības:
  • ean13
    3250611067764
  • MPN
    ADA516D

  • Mounting
    DIN rail 35mm
  • Poles
    1P+N
  • Trip curve
    B
  • Rcd type
    A
  • Brand
    Hager
  • SKU
    ADA516D
  • Product Type
    RCBO (combined)
  • EAN
    3250611067764
  • Model / Reference
    ADA516D
  • Breaking Capacity (Icn)
    10 kA
  • Rated Current (In)
    16 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50 Hz
  • Width (DIN Modules)
    2 module
  • Tripping / Time Delay Class
    Instantaneous
