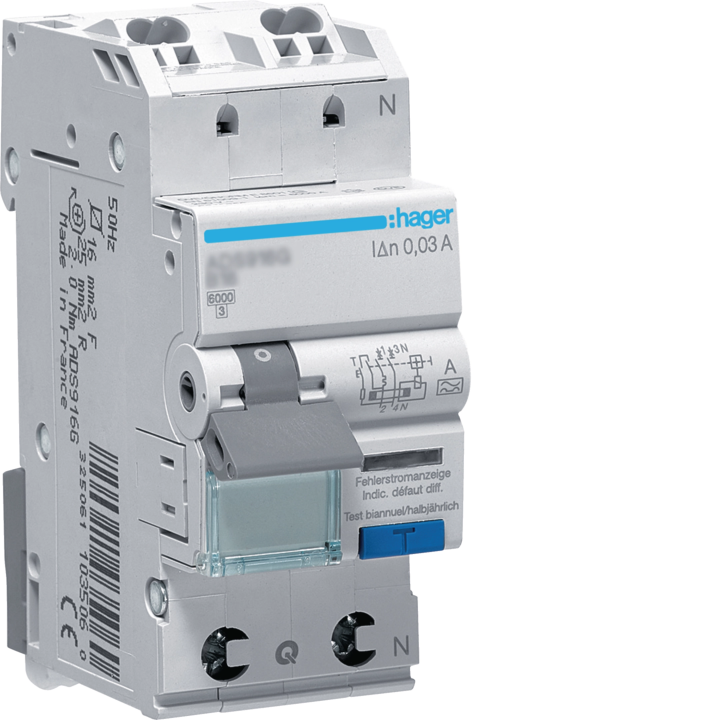

Hager ADS966D RCBO 1P+N 6kA C-16A 30mA Type A

Hager ADS966D RCBO 1P+N 6kA C-16A 30mA Type A

69,15 €
AR PVN
Hager ADS966D RCBO: 1P+N, 6kA breaking capacity, C-16A, 30mA Type A residual current. Reliable protection for electrical circuits.

The Hager ADS966D is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for 1P+N applications. It offers a rated current of 16A, a tripping curve C, and a breaking capacity of 6kA, ensuring reliable protection against overloads and short circuits. The integrated residual current protection is 30mA Type A, providing enhanced safety for personnel and equipment.

  • 1P+N configuration for single-phase circuits
  • C-16A trip curve for moderate inrush currents
  • 6kA breaking capacity (Icn) for robust fault handling
  • 30mA Type A residual current protection
  • Compact 2-module width for space-saving installation on 35mm DIN rail
  • Rated voltage 230V AC, frequency 50/60Hz

This RCBO is ideal for use in residential and commercial distribution boards where combined overcurrent and earth leakage protection is required. Easy to install with screw terminals.

  • Norāde
    ADS966D
  • Pieejamās vispirms
    800 vienības:
  • ean13
    3250611068228
  • MPN
    ADS966D

  • IP rating
    IP20
  • Mounting
    DIN rail 35mm
  • Poles
    1P+N
  • Trip curve
    C
  • Rcd type
    A
  • Terminal type
    Screw
  • Brand
    Hager
  • SKU
    ADS966D
  • Product Type
    RCBO (Residual Current Circuit Breaker with Overcurrent Protection)
  • EAN
    3250611068228
  • Model / Reference
    ADS966D
  • Breaking Capacity (Icn)
    6 kA
  • Rated Current (In)
    16 A
  • Residual Current (IΔn)
    30 mA
  • Rated Voltage (Ue)
    230V V
  • Rated Frequency
    50/60 Hz
  • Width (DIN Modules)
    2 module
  • Tripping / Time Delay Class
    Instantaneous
