3 kanālu standarta DIN Shelly Qubino Wave Pro 3 Z-Wave

Price: 68,66 €
AR PVN
Control lighting and devices with Shelly Qubino Wave Pro 3 Z-Wave 3-channel relay. 48A total, DIN rail, S2 encryption. Buy now!
Product availability: Pēc pasūtījuma

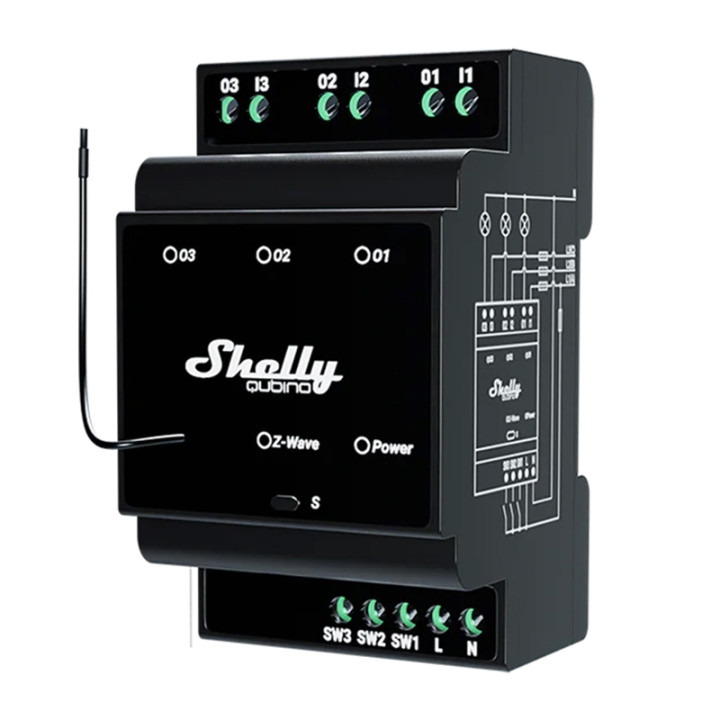

The Shelly Qubino Wave Pro 3 is an advanced 3-channel DIN-rail-mounted Z-Wave relay for reliable control of lighting and electrical devices in homes and commercial buildings. It supports a load of up to 48 amps (16 amps per channel) with potential-free contacts and offers the highest level of security with S2 encryption. The device works with over 4,000 certified Z-Wave devices, allows remote control via smartphone, and features SmartStart for easy network integration. Low power consumption (< 0.3W), Z-Wave 800 Series chipset, and overheat/surge protection make it an essential component for any installation.

  • 3 independent channels – 16 A each, 48 A total, potential-free contacts
  • Z-Wave 800 Series – improved range and stability, 908.4 MHz
  • S2 encryption – maximum security with AES128
  • SmartStart – automatic network addition
  • Low power consumption – less than 0.3 W
  • DIN rail mounting – standard 96 x 53 x 59 mm enclosure
  • Overheat and surge protection – fireproof V-0 material

Ideal for new installations, the Shelly Wave Pro 3 can control lighting, HVAC, and appliances. It also functions as a Z-Wave repeater, extending network range up to 40 meters indoors. Compatible with over 4,000 Z-Wave devices and controllable via the Shelly app.

  • Zīmols
  • Norāde
    078302
  • ean13
    3800235269336
  • MPN
    QubinoWavePro3

  • Dimensions
    96 x 53 x 59 mm
  • Security
    S2 encryption
  • Materiāls
    Plastic
  • Weight
    150 g
  • Mounting type
    DIN-rail
  • Humidity
    30% to 70% RH
  • Input voltage
    110-240 V AC V
  • Frequency band
    908.4 MHz
  • Cable cross section
    0.5 to 2.5 mm²
  • Operating temperature range
    -20 to 40 °C
  • Range
    Up to 40 m
  • Max switching voltage ac
    240 V
  • Max switching current ac
    16 A per channel, 48 A total A
  • Maximum altitude
    2000 m
  • Supply type
    Smart meter / controller
  • Protections
    Over-temperature (OTP)
  • Output current
    16 A per channel, 48 A total A
  • Compatible app
    Shelly
  • Max switching current dc
    16 A per channel, 48 A total A
  • Zīmols
    Shelly
  • Model
    QubinoWavePro3
  • Artikuls
    078302
  • Produkta veids
    DIN rail relay
  • EAN
    3800235269336
  • Connectivity / Protocol
    Z-Wave
  • Color
    Black
  • Maximum Tightening Torque
    0.4 Nm
  • SmartStart
    Yes
  • Stripped Wire Length
    6 to 7 mm
  • Z-Wave Repeater
    Yes
  • Max switching voltage DC
    30 V
  • Chipset
    Z-Wave S800
