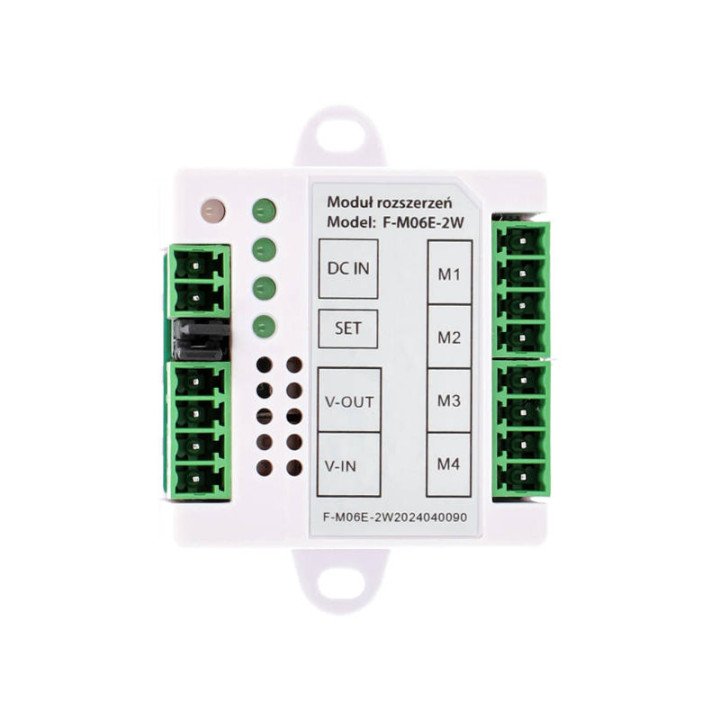

Genway F-M06E-2W Extension Module for F-Series Video Door Phone System

Genway F-M06E-2W Extension Module for F-Series Video Door Phone System

Genway
44,79 €
AR PVN
Expand your Genway F-Series video door phone system with the F-M06E-2W module. Supports up to 4 receivers, easy installation.
Piegāde: 5 darba dienas

The Genway F-M06E-2W is an extension module designed for the F-Series video door phone system. It allows connection of up to 4 monitors or intercom units, providing both communication and power. Powered by the F-PS-4 power supply, up to 2 modules can be cascaded. Ideal for multi-family installations, the module features LED indicators for easy status monitoring of each connected receiver, simplifying system setup and maintenance.

  • Up to 4 receivers per module
  • Wide input voltage DC 18~30 V
  • Low power consumption max 2.5 W, standby 0.5 W
  • Port currents: M1-M3 ≤0.5 A, M4 ≤1 A
  • Compact dimensions: 64 × 45 × 27 mm
  • Operating temperature: -25°C to 45°C

Use the F-M06E-2W to expand your video door phone system reliably and efficiently.

  • Zīmols
  • Norāde
    F-M06E-2W
  • Pieejamās vispirms
    999 vienības:
  • MPN
    F-M06E-2W

  • Operating temperature
    -25 ~ 45 °C
  • Storage temperature
    -30 ~ 60 °C
  • Supply voltage
    18 ~ 30 V DC
  • Zīmols
    Genway
  • Model
    F-M06E-2W
  • Artikuls
    F-M06E-2W
  • Produkta veids
    Extension Module for Video Door Phone System
  • Dimensions (L x W x H)
    64 × 45 × 27 mm
  • Power Consumption (Max)
    2.5 W
  • Power Consumption (Standby)
    0.5 W
  • Max Receivers per Module
    4
  • Current on Ports M1-M3
    ≤0.5 A
  • Current on Port M4
    ≤1 A
