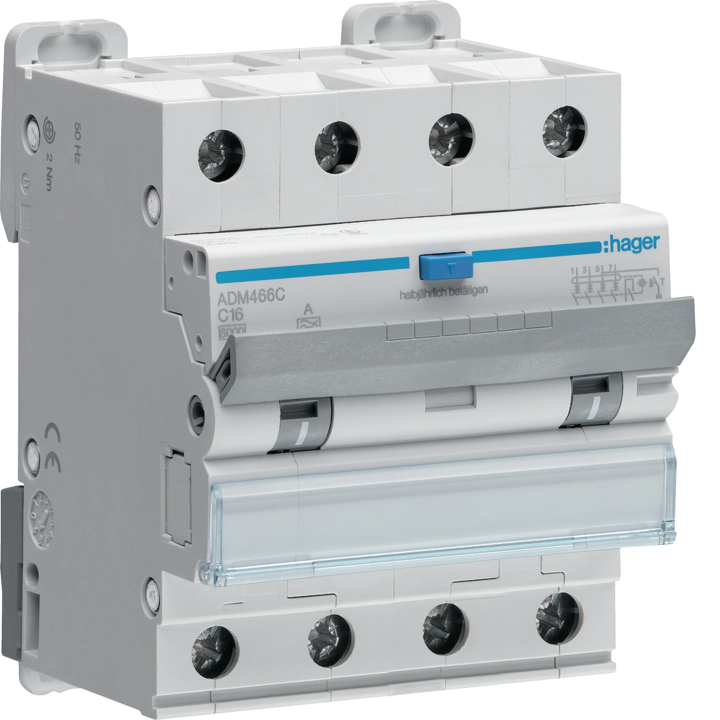

Hager ADM466C RCBO 4P 6kA C-16A 30mA Type A

The Hager ADM466C is a combined residual current circuit breaker with overcurrent protection (RCBO) designed for 4-pole applications. It features a rated current of 16A, trip curve C, and a breaking capacity of 6kA. The device provides residual current protection at 30mA with Type A sensitivity, making it suitable for circuits with electronic loads.

• 4-pole RCBO for three-phase systems
• Rated current 16A with curve C characteristic
• Residual current 30mA Type A for AC and pulsating DC
• Breaking capacity 6kA according to EN 61009
• Compact 4-module width for DIN rail mounting

Ideal for distribution boards in residential and commercial installations requiring combined overcurrent and earth leakage protection.
